Offer

Homeowner/Landowner Riders

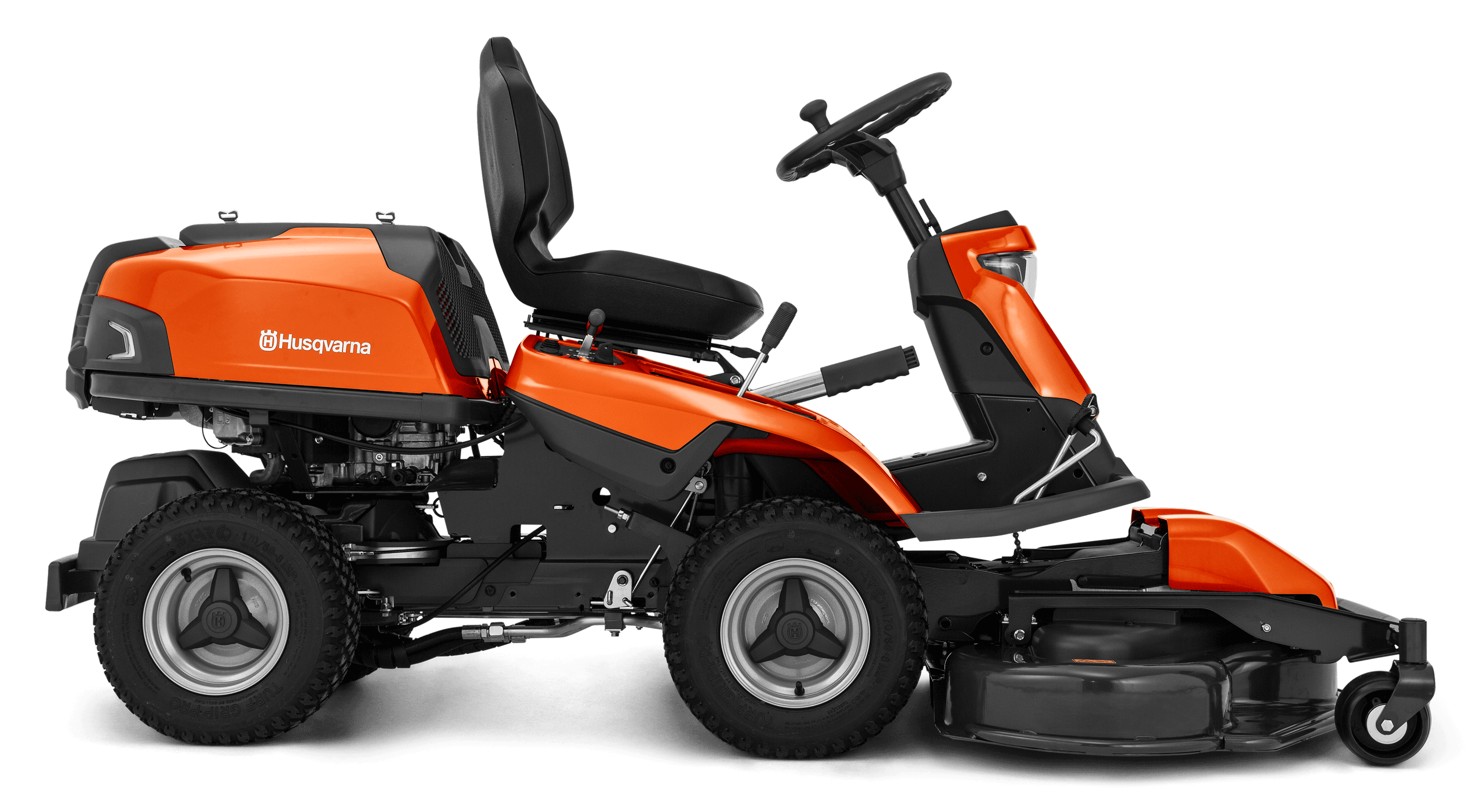

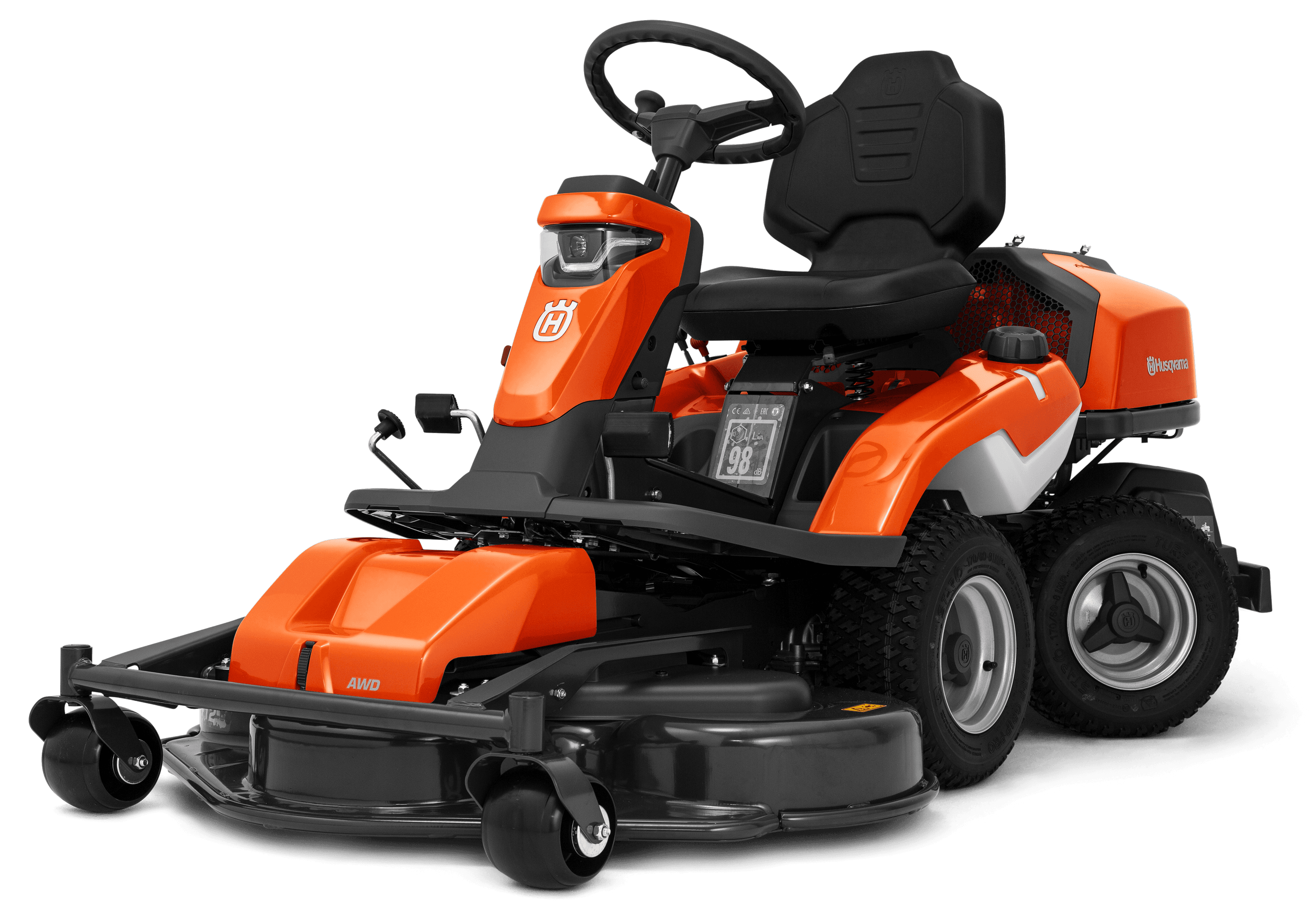

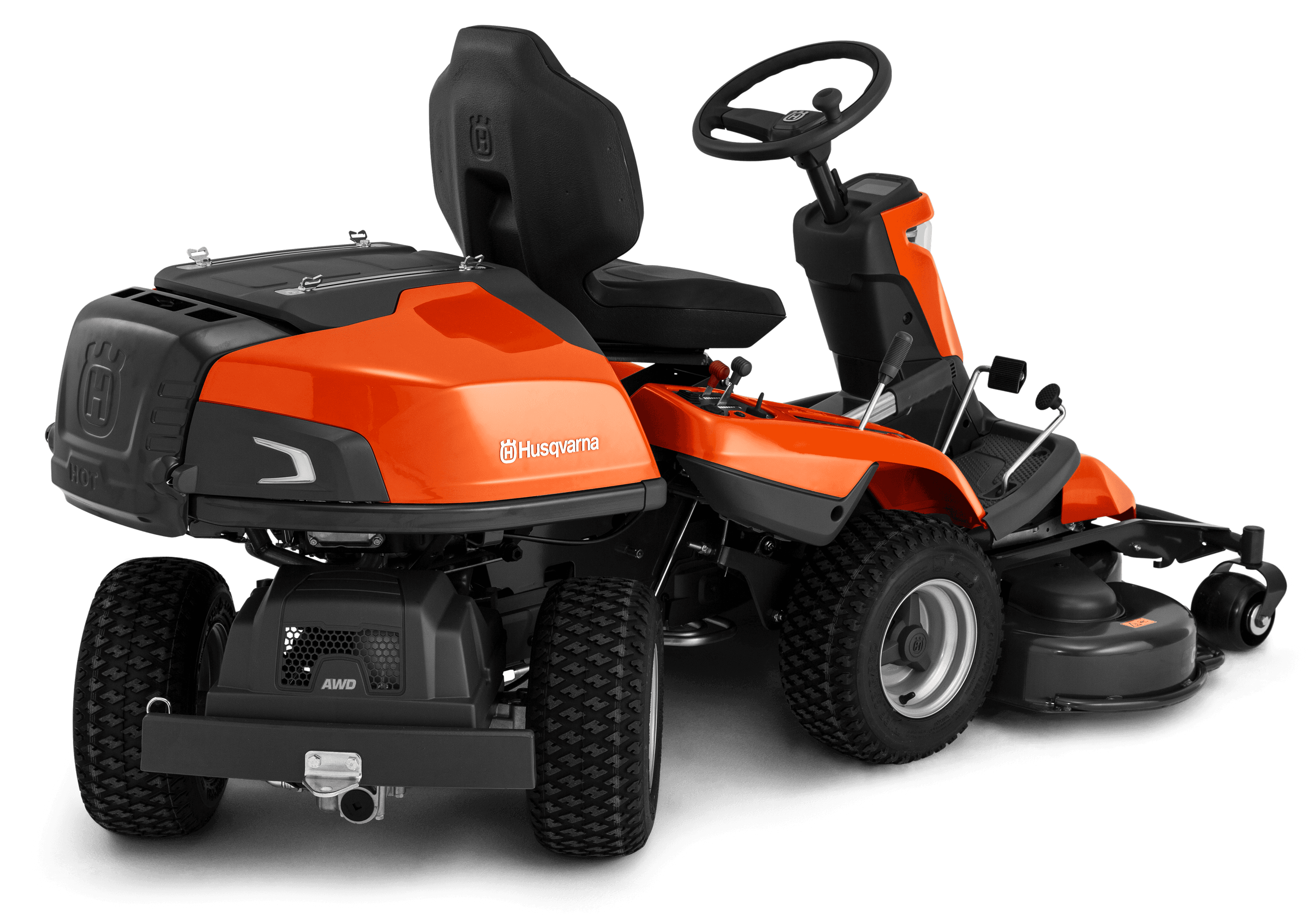

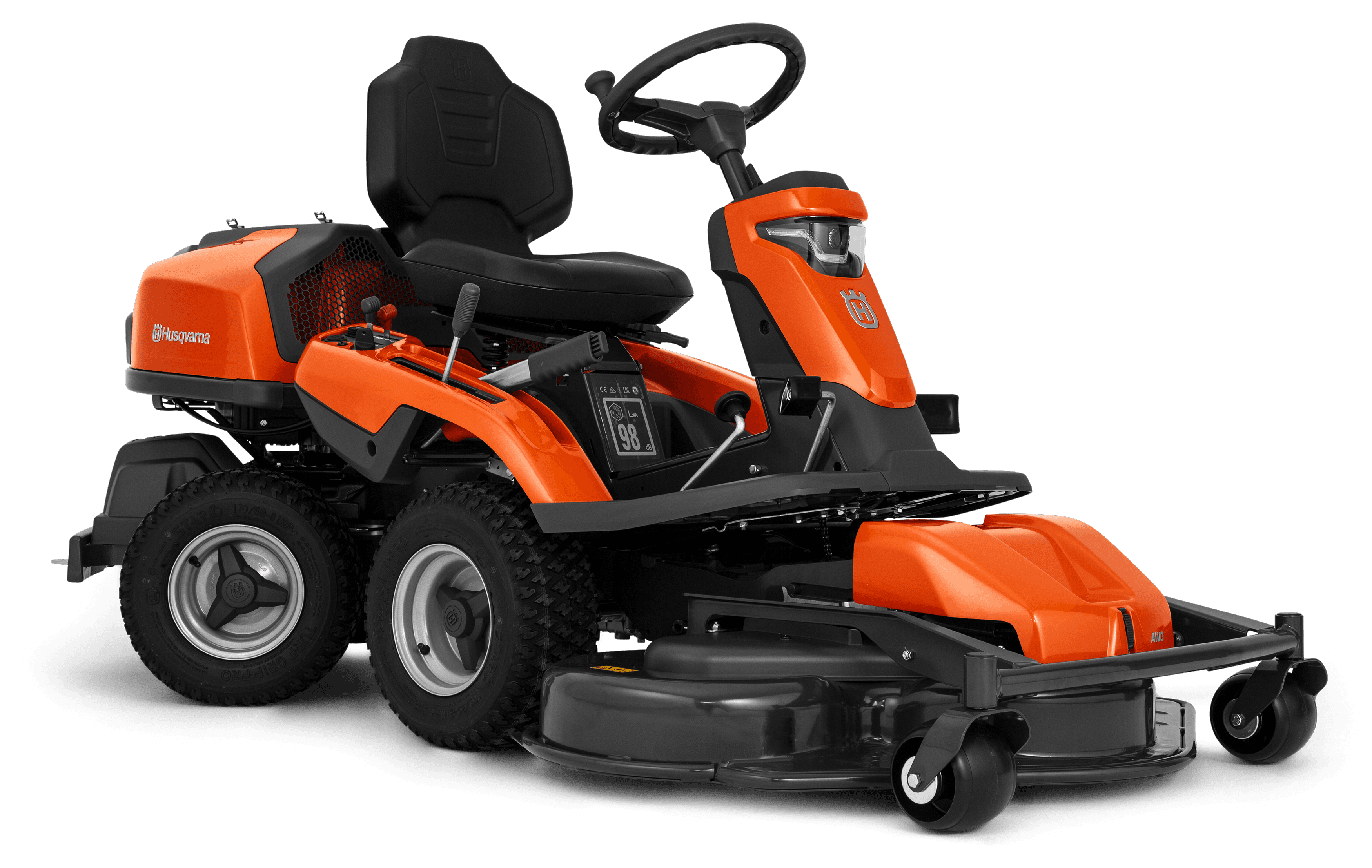

R 316TsX AWD

Loading...Rec. retail price incl. GST $15,499.00SKU: 970542910
  • Power/fuel typePetrol
  • Cutting width, min94 cm
See financing options

HOT PRICE

Save up to $700! This season take advantage of hot prices on selected Garden Tractors, Zero-Turns and Riders for a limited time!*

Terms & Conditions: *Offer valid 01/09/24 - 30/11/24 at participating Husqvarna Dealers only, while stocks last. Valid for the following models only: Garden Tractors - TS112, TS114, TS142T, TS142TXD, TS242TXD, TS248TXD, TS354 & TC114; Zero-Turns - Z146, Z242E & Z242F; Riders - R214TC, R316TX-CC103 & R316TSXAWD-CC12. CLICK HERE for more info & T&Cs.

Product description

A high-performance ride-on lawn mower built for the toughest jobs. Husqvarna R 316TsX AWD is superb for all-year use, with a great variety of accessories and comes complete with a 112cm combi cutting deck. Power-assisted articulated steering and All-Wheel-Drive provide great control and traction in challenging terrain. LED lights are fitted front and back. Ready for Husqvarna Connect with Bluetooth®.

5-year warrantyFinance options

Product Information

Features (12)

For greater ergonomics and comfort a telescopic steering column allows the steering wheel height to be adjusted. image

Adjustable steering wheel

Height adjustable steering wheel

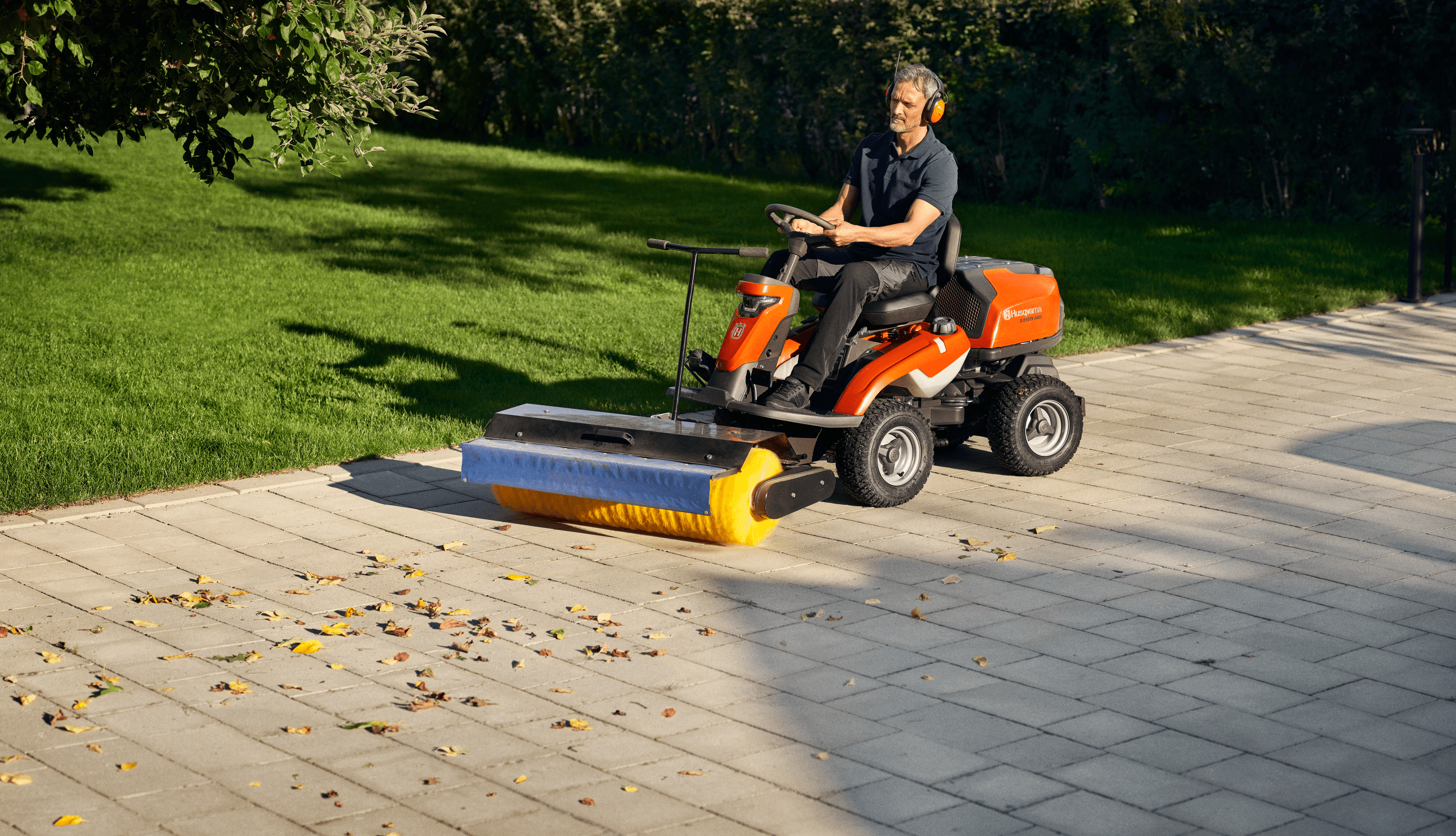

Easy to shift between cutting decks and front-mounted attachments, such as broom and flail mower. image

Attachment frame

Attachment frame for maximum versatility

The intuitive display communicates with the driver through visual symbols and warning sounds, assists in handling and gives real time data and warnings. image

HMI Display

HMI Display for real time updates on your Rider's status

This Rider is delivered with a Combi cutting deck for efficient BioClip® (mulching) and rear ejection cutting. image

Combi cutting deck

Combi cutting deck

Power-assisted steering makes driving less strenuous and more enjoyable. image

Power steering

Power steering makes more enjoyable drive

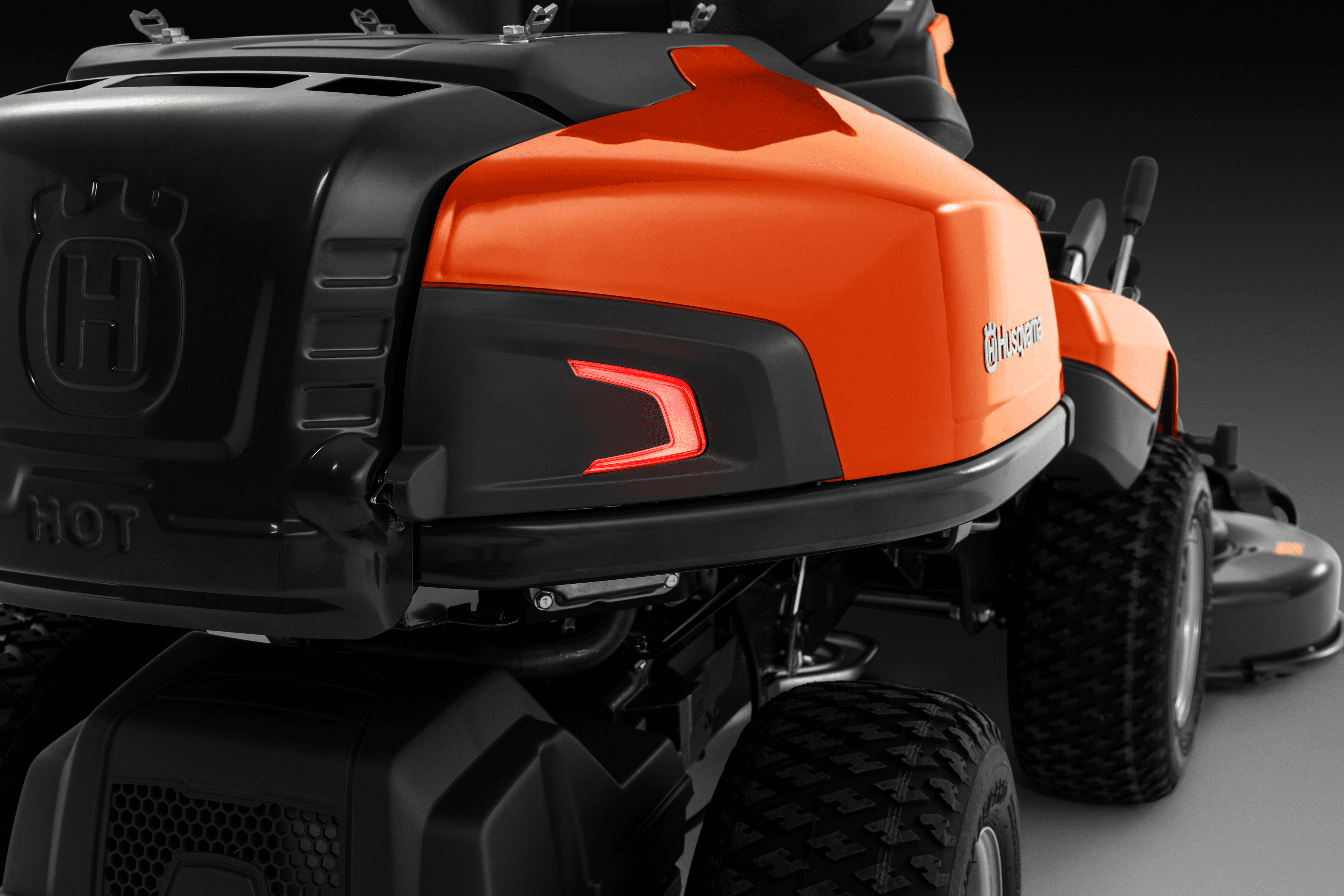

Dual LED lights for enlarged lighted area and safer operation in darker conditions. image

Dual LED lights for improved visibility.

Dual LED lights for improved visibility.

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low centre of gravity contributes to the exceptional traction as well as a comfortable 'sit-in' feeling for the user. image

Comfortable driver's position

Comfortable driver's position

Our patented articulated steering increases driving pleasure by improving manoeuvrability. image

Patented articulated steering

Min. clearance circle by articulated steering

Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc. image

Front-mounted cutting deck

Front-mounted deck for optimum accessibility

All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition. image

All-Wheel-Drive (AWD)

All-Wheel Drive secure traction on all areas

Service position on the cutting deck facilitates cleaning and servicing. image

Service position

Service position for easy deck maintenance

With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play. Not yet available on all markets. image

Husqvarna Connect

With the smart Husqvarna Connect app, you’ll have easy access to tips, manuals and spare part recommendations. The app also provides additional information such as runtime and charging status as well as maintenance and service needs. <i>*not yet available in all countries</i>

Specifications

Art No: 970542910
Output shaft power9.7 kW
Weight (excl. cutting equipment)251 kg
Cylinder displacement603 cm³
Weight (complete product w/o side packed articles)251 kg
Fuel tank volume12 l
Sound pressure level at operators ear87 dB(A)
Base machine, height118.1 cm
Base machine, length200.8 cm
Base machine, width88.3 cm
Battery capacity24 Ah
Battery pack weight7.2 kg
Battery voltage12 V
Cutting height max75 mm
Cutting height min25 mm
Cutting width, max112 cm
Cutting width, min94 cm
Fuel consumption349 g/kWh
Fuel tank volume3.17 gal (US)
Gross weight towed125 kg
Ground clearance90 mm
Net power at preset rpm3100 rpm
Net power at preset rpm Energy9.7 kW
Oil capacity1.7 l
Sound power level, guaranteed (LWA)99 dB(A)
Sound power level, measured98 dB(A)
Speed forward max9 km/h
Speed reverse max8 km/h
Uncut circle30 cm
Vibration level seat0.7 m/s²
Vibration level steering wheel2.5 m/s²
Wheelbase88.7 cm
